Data Sheet Download

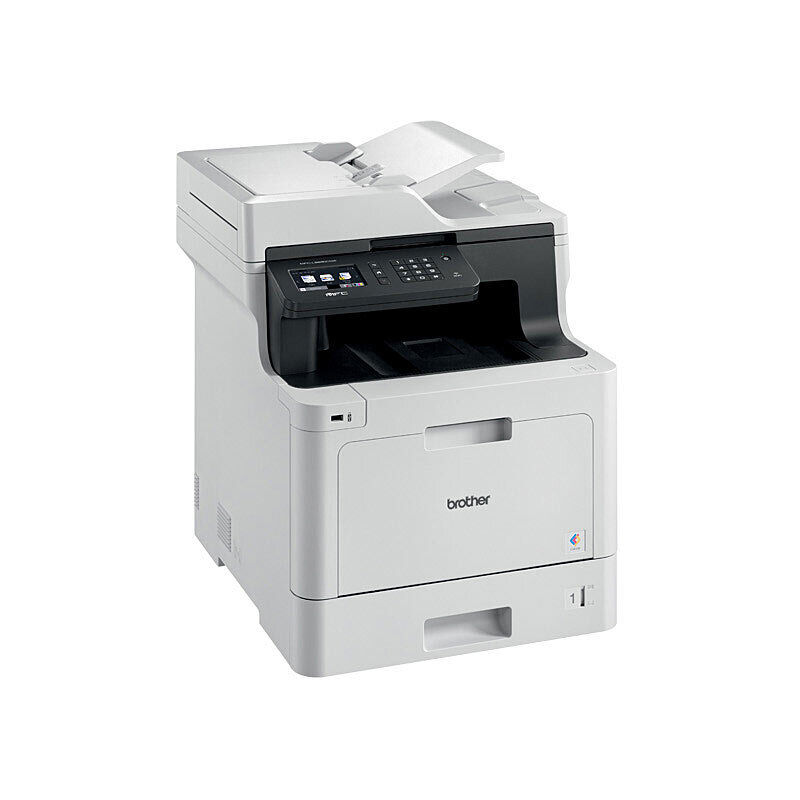

A professional colour laser printer, the MFC-L8690CDW provides great print speeds, combined with comprehensive mobile and cloud connectivity options, making integration into your office seamless
Reliable: Built to perform for longer and meet the demands of high output work environments, the L5000 range has been totally remodelled with robust build quality that's even more resilient and hardwearing Save time: High-resolution colour laser all-in-one printer, with outstanding print speeds of up to 31ppm and duplex scan speeds of up to 56ipm in both colour and mono. You can be confident that efficiency has been at the heart of the design Eco-friendly: Brother's latest colour laser range is compliant with a number of environmental standards including German Blue Angel and Nordic Swan. As a result, not only does it help your business work more efficiently, it is also more energy efficient, reducing impact on the environment and lowering your costs at the same time Up to 31 ppm colour & mono print speed 28ipm (56ipm) scan speed colour & mono 9.3cm touchscreen 300 sheet standard paper capacity USB, Wireless and Gigabit Wired network 3000 Black and 1800 Cyan, Magenta & Yellow Toners Inbox SPECIFICATIONS Printer type: Colour Function: Print, Copy and Scan, Fax Display: Colour touchscreen Display size: 9.3cm Laser classification: Class 1 laser product (IEC 60825-1:2007) Max paper size: A4 Memory: 512MB Processor: 800MHz- Sub: 133Mhz Technology: Laser CONNECTIVITY Connectivity: Wired Network, Wireless Local interface: Hi-Speed USB 2.0 & USB Host for an external card reader Wi-Fi Direct: Print wirelessly without having to go through a wireless access point (both automatic and manual methods supported) Wired network interface: Ethernet 10Base-T/100Base-TX/1000Base-T Wireless network interface: IEEE 802.11b/g/n Mobile connectivity: AirPrint, Android Print Service Plugin, Google Cloud Print 2.0, iPrint&Scan, Mopria, Wi-Fi Direct COPY 2-sided copy: Yes Resolution: Up to 1200 x 600dpi Speed: Up to 31cpm (copies per minute) colour & mono Enlargement / reduction ratio: Reduce or Increase document sizes from 25% to 400% in 1% increments ENVIRONMENTAL Blue Angel environmental accreditation: Yes Nordic Swan environmental accreditation: Yes Power consumption (Watts): Printing - 580W, ready - 70W, sleep - 10W, deep sleep - 1.4W, power down - 0.03W Sound power: Printing - 6.56BA, quiet mode printing - 6BA, ready - Inaudible Sound pressure: Printing - 49dbA, quiet mode printing - 44dbA, ready - Inaudible Typical electrical consumption: 1.9kWh/Week FAX Automatic 2 sided faxing: Yes Fax modem: 33600 kbps Internet fax: Optional Download PC Fax: Yes MEDIA SPECIFICATIONS Types and sizes: Standard & Optional Trays - plain, recycled, coloured and letterhead (between 60 - 105gsm); Multi Purpose Tray - plain, recycled, bond, coloured, letterhead and glossy paper (between 60 -163gsm); 2-sided Print - plain, recycled, coloured, letterhead and glossy paper (between 60 - 105gsm); Automatic Document Feeder - Plain & recycled paper (between 64 - 90gsm) Weights: Standard Tray - A4, Letter, A5, A5(Long Edge), A6, Executive, Legal, Folio, Mexico Legal; Multi Purpose Tray- Width: 76.2mm to 215.9mm x Length: 127mm to 355.6mm; Automatic Document Feeder - Width: 105mm to 215.9mm x Length: 147.3mm to 355.6mm 2-sided Print - A4 NETWORK Secure print: Yes Wi-Fi Direct: Yes Wired network: Ethernet 10Base-T/100Base-TX/1000Base-T Wired network security: SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP), SNMP v3 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPSec Wireless network: IEEE 802.11b/g/n Wireless network security: WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) APOP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP3, IMAP4), SNMP v3, Kerberos, IPsec, 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAPTTLS) Operating System and Software: Windows 10 (32 & 64 bit editions) Windows 8 (32 & 64 bit editions) Windows 7 (32 & 64 bit editions) Windows Server 2016, 2012, 2012R2 & 2008R2 Windows Server 2008 (32 & 64 bit editions) Windows Server supports network printing only Mac: OS v10.10.5, v10.11.x, v10.12 or greater Linux CUPS, LPD/LPRng (x86/x64 environment) PAPER HANDLING Paper input: Standard Tray - Up to 250 sheets, Multi Purpose Tray - Up to 50 sheets, ADF (Automatic Document Feeder) - Up to 50 sheets Paper output: Face Down - 150 sheets Face Up (Straight Paper Path) - 1 sheet PRINT Resolution: 2400dpi (2400 x 600dpi), 600 x 600dpi A4 standard colour print speed: 31 pages per minute A4 standard mono print speed: 31 pages per minute Automatic 2 sided print: Yes First print out time: Less than 15 seconds Recommended monthly volume: Up to 3000 pages SCAN 2-Sided scan: Yes Resolution: Up to 1200 x 2400dpi (from flatbed), 1200 x 600dpi (from ADF), 19200 x 19200dpi (Enhanced) Speed: 28ppm/56ipm colour & mono Scanner type: Dual CIS SECURITY FEATURES 802.1x: Yes Secure function lock v3: Yes Secure print: Yes Setting lock: Yes In the Box: Supplies, Power supply cord, Fax Line Cord, Product safety guide, Windows Software disc, Warranty card, Quick setup guide Dimensions (with carton): 663 x 542 x 654mm Weight (with carton): 33.7 kg Dimension (without carton): 435 x 526 x 539mm Weight (without carton): 27.9 kg OEM: MFC-L8690CDW Due to freight costs, some orders may incur a delivery charge and this will vary depending on the order, particularly in regional areas. Delivery costs can be confirmed at the time of order. Some items require assembly, if you need help this can be advised at the time of order. A service fee for assembly/installation may also apply. Delivery lead times may apply to some items, this can be confirmed at the time of order
